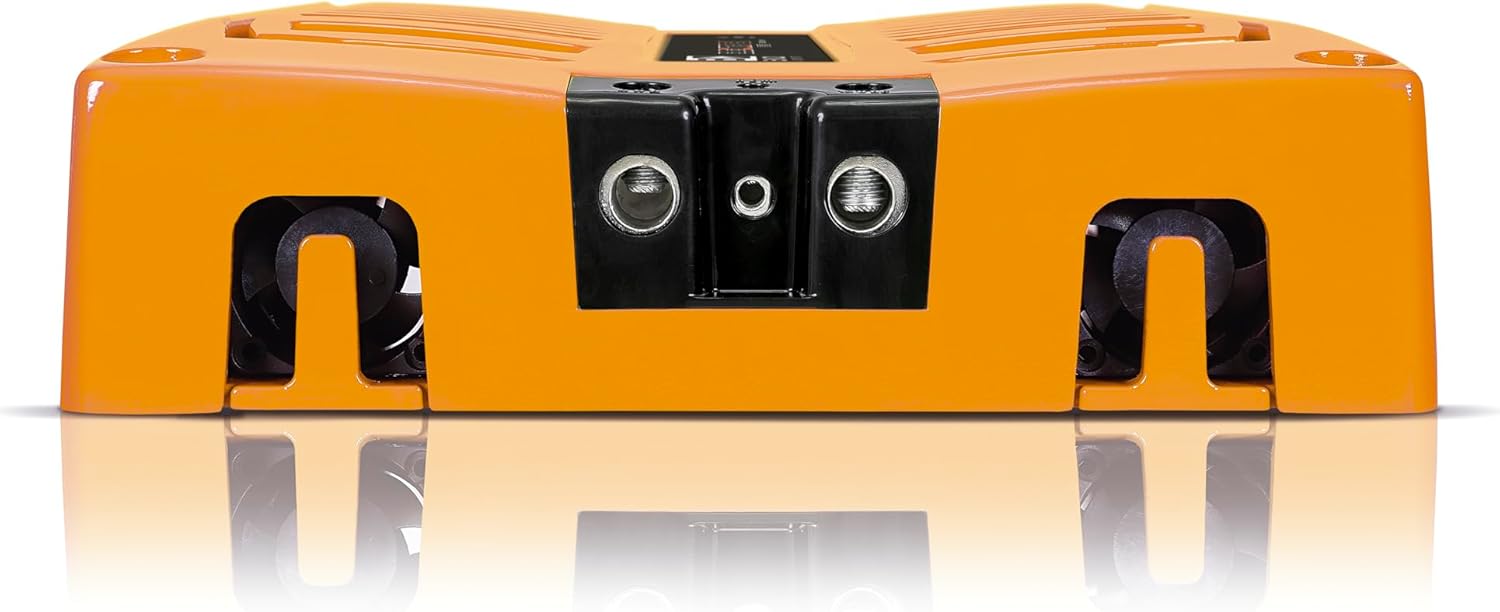

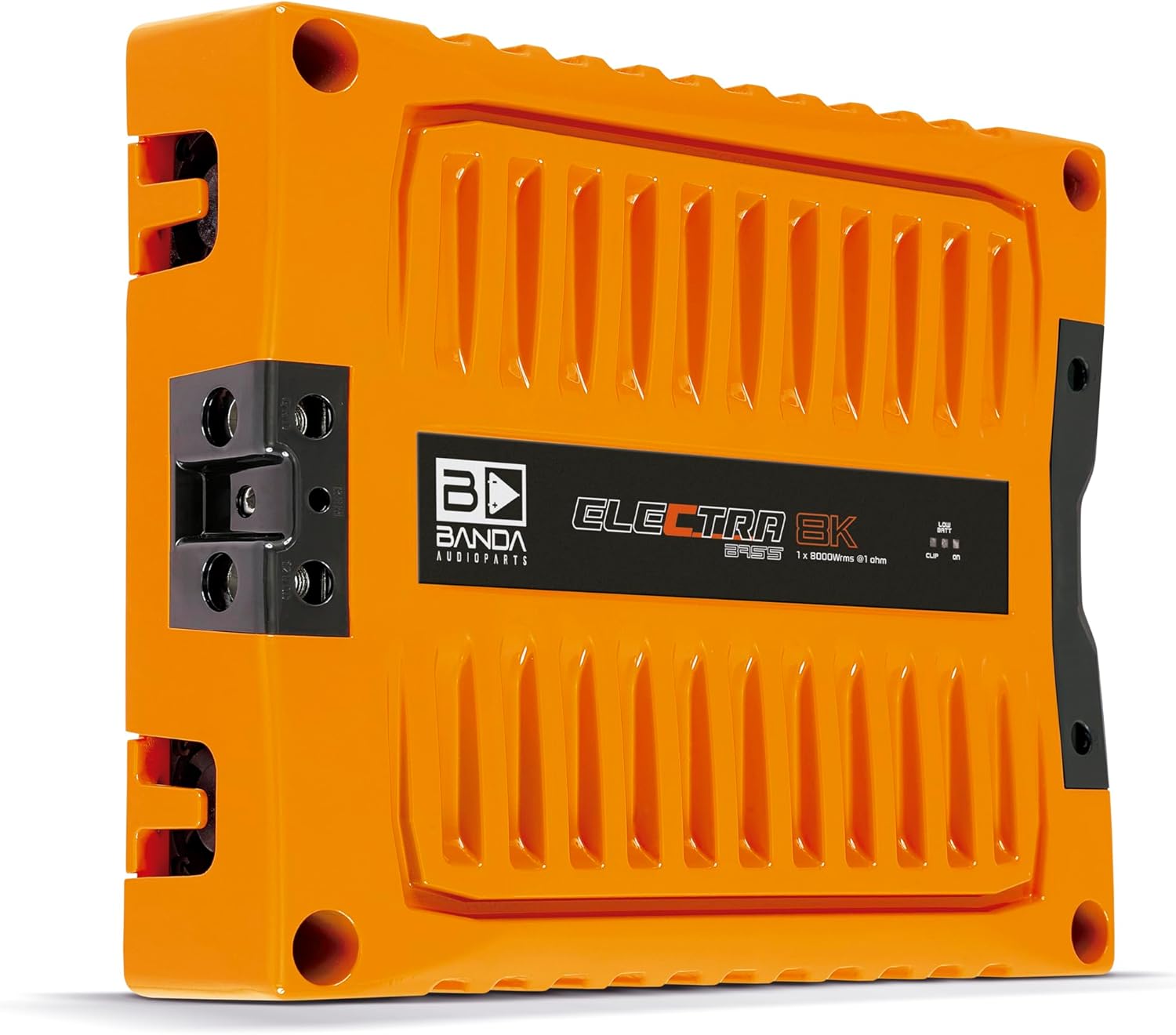

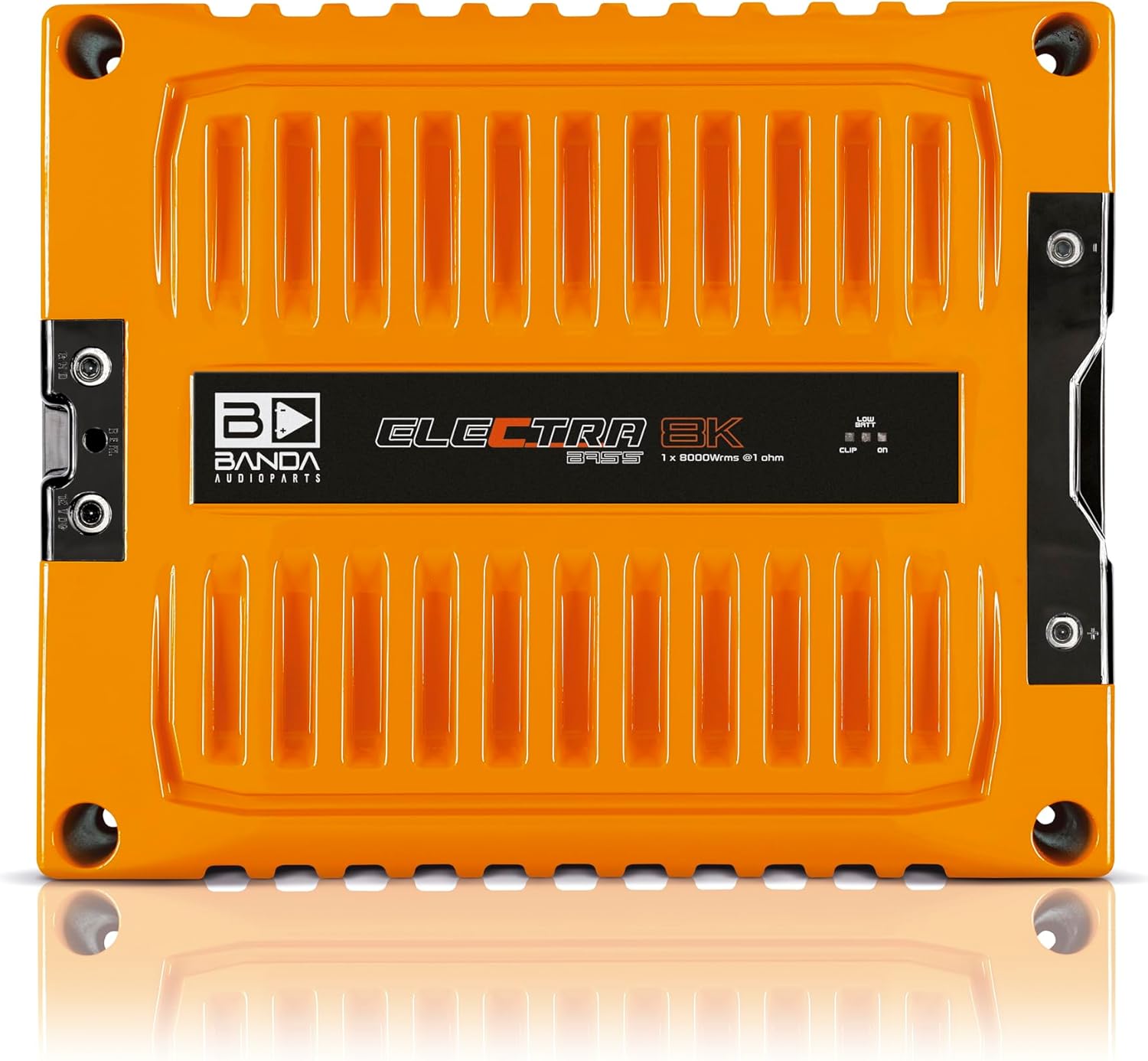

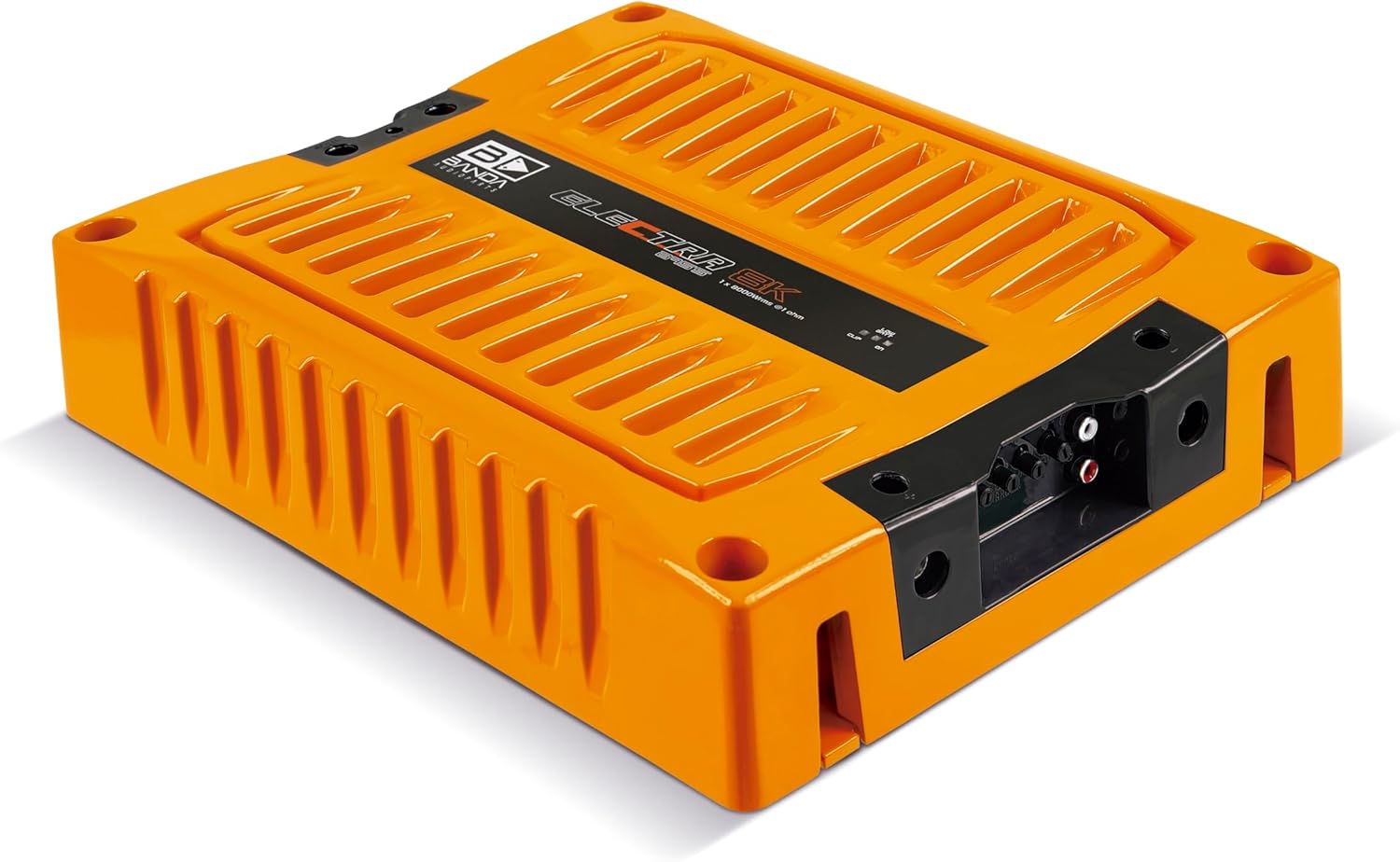

Banda ELEC8K1ORANGE Electra Bass 8K Car Audio Amplifier Module 1 Ohm - 8000 Wrms Adjustable Bass Boost LED Indicator Sound Specialization - Orange

The ELECTRA line has been meticulously crafted for those in pursuit of unmatched, deep bass. It boasts a frequency response spanning from 16 to 500Hz, making it ideal for driving subwoofers and bass with precision. The standout feature is the variable BASS BOOST, adjustable from 30 to 80Hz with an impressive 12dB boost capability, enhancing the low-end performance of your audio system. || Impressive Frequency Response || With a wide frequency response range from 16 to 500Hz, the ELECTRA is perfectly suited for driving subwoofers and bass. It excels in delivering deep, resonant low-frequency tones that bring your audio to life. || Variable BASS BOOST || The adjustable BASS BOOST, with a range of 30 to 80Hz and a powerful 12dB boost, allows you to fine-tune your bass to perfection, delivering a powerful and immersive listening experience. || Robust Aluminum Construction || Housed in a robust 100% aluminum chassis, the ELECTRA is built to last and efficiently dissipates heat to ensure consistent performance, even during intense use. || Impedance and Power || This amplifier is capable of producing 8000 Watts RMS with a 1-ohm impedance, providing the necessary power for impactful bass reproduction. || SPECIFICATIONS || Maximum Power at 14.4V @ 1 Ohm : 9000-W rms || Maximum Power at 14.4V @ 2 Ohms : 7400-W rms || Maximum Power at 12.6V @ 1 Ohm : 8000-W rms || Maximum Power at 12.6V @ 2 Ohms : 5100-W rms || Efficiency @ 2 Ohms : 83% || Efficiency @ 1 Ohm : 77% || Input Voltage : 9 - 15V || Input Impedance : 100K Ohms || Maximum THD at Full Power : <3% || Input Sensitivity : 200mV to 8V || Signal-to-Noise Ratio : 80dB || Frequency Response : 16 to 500Hz (-3dB) || HPF (Subsonic) : 16 - 120Hz @ 12dB/octave Linkwitz-Riley || LPF (Crossover) : 50 - 500Hz @ 12dB/octave Linkwitz-Riley || Variable Bass Boost : 30 - 80Hz with up to 12dB || Recommended Fuse : 2 x 225A || Standby Current Draw : ~3A || Maximum Current Draw (Musical Signal) : 400A || Maximum Current Draw (Sine Signal) : 850A || Minimum Recommended Power Cable : 70mm / 0 AWG || Minimum Recommended Output Cable : 2 x 6mm / 2 x 3 AWG || Weight (Kg) : 6.3 | 13.9 lbs || Height (mm) : 73 | 2.8 in || Width (mm) : 256 | 10 in || Depth (mm) : 317 | 12.5 in || The ELECTRA 8K 1 Ohm Amplifier Module is the ultimate choice for those who demand exceptional bass performance and precision. Elevate your audio experience to new heights with this powerful and versatile amplifier.

• GENERAL || Brand : BANDA || Model Number : ELEC8K1ORANGE || UPC : 7898713131486 || SPECIFICATIONS || Maximum Power at 14.4V @ 1 Ohm : 9000-W rms || Maximum Power at 14.4V @ 2 Ohms : 7400-W rms || Maximum Power at 12.6V @ 1 Ohm : 8000-W rms || Maximum Power at 12.6V @ 2 Ohms : 5100-W rms || Efficiency @ 2 Ohms : 83% || Efficiency @ 1 Ohm : 77% || Input Voltage : 9 - 15V || Input Impedance : 100K Ohms || Maximum THD at Full Power : <3% || Input Sensitivity : 200mV to 8V ||
• SPECIFICATIONS || Signal-to-Noise Ratio : 80dB || Frequency Response : 16 to 500Hz (-3dB) || HPF (Subsonic) : 16 - 120Hz @ 12dB/octave Linkwitz-Riley || LPF (Crossover) : 50 - 500Hz @ 12dB/octave Linkwitz-Riley || Variable Bass Boost : 30 - 80Hz with up to 12dB || Recommended Fuse : 2 x 225A || Standby Current Draw : ~3A || Maximum Current Draw (Musical Signal) : 400A || Maximum Current Draw (Sine Signal) : 850A ||
• SPECIFICATIONS || Minimum Recommended Power Cable : 70mm / 0 AWG || Minimum Recommended Output Cable : 2 x 6mm / 2 x 3 AWG || Weight (Kg) : 6.3 | 13.9 lbs || Height (mm) : 73 | 2.8 in || Width (mm) : 256 | 10 in || Depth (mm) : 317 | 12.5 in || The ELECTRA 8K 1 Ohm Amplifier Module is the ultimate choice for those who demand exceptional bass performance and precision. Elevate your audio experience to new heights with this powerful and versatile amplifier. ||
• || Impressive Frequency Response || With a wide frequency response range from 16 to 500Hz, the ELECTRA is perfectly suited for driving subwoofers and bass. It excels in delivering deep, resonant low-frequency tones that bring your audio to life. || Variable BASS BOOST || The adjustable BASS BOOST, with a range of 30 to 80Hz and a powerful 12dB boost, allows you to fine-tune your bass to perfection, delivering a powerful and immersive listening experience. ||
• || Robust Aluminum Construction || Housed in a robust 100% aluminum chassis, the ELECTRA is built to last and efficiently dissipates heat to ensure consistent performance, even during intense use. || Impedance and Power || This amplifier is capable of producing 8000 Watts RMS with a 1-ohm impedance, providing the necessary power for impactful bass reproduction.
